Aston Martin Vanquish Rear Subframe Corrosion Treatment
A targeted rear subframe refresh on a 2015 Aston Martin Vanquish. The wider underside presented very cleanly, so the scope was kept focused on the rear steel subframe – dry ice blasted to reveal its true condition, rust-treated, sealed with epoxy, then protected with clear Bilt Hamber Dynax UC wax outside and cavity wax inside.
Published
In short: what was done to this Vanquish
The rest of this Vanquish presented very cleanly underneath, so the work was focused on the rear subframe, where surface corrosion and failing powder coating were beginning to show. The subframe was dry ice blasted to reveal its true condition, treated with a multi-stage rust process, sealed with an epoxy coating, then protected with clear Bilt Hamber Dynax UC wax on the outside and cavity wax injected inside. The result is a cost-effective way to treat and protect the existing subframe before replacement becomes the only option.
Why the Vanquish came in
Although this 2015 Vanquish was not an old vehicle, the rear subframe was already looking worse than expected for its age and mileage. There was visible surface corrosion across the subframe, along with areas where the original coating had started to fail. Once powder coating begins to lift or flake, moisture can sit beneath it and corrosion can continue developing underneath – which is why the owner brought the car to us early.
The wider underside presented very cleanly, so the scope was kept focused on the rear steel subframe, which is one of the key areas Aston Martin owners should keep an eye on. The aim was not to restore the entire underside, but to catch the subframe before the corrosion became more serious, treat it properly, and give it a much better chance of lasting for years to come.
- Vehicle
- Aston Martin Vanquish V12 S (2015)
- Work carried out
- Rear subframe refresh
- Main concern
- Surface corrosion and failing coating on the rear subframe
- Customer goal
- Protect the existing subframe and avoid replacement costs
- External finish
- Bilt Hamber Dynax UC clear wax
- Internal protection
- Cavity wax inside the subframe
Why subframe treatment matters on an Aston Martin
Aston Martin subframe replacement can be a significant cost. Depending on the model, the parts required, the condition of the car and the labour involved, owners can be faced with very expensive repair options. That is why a targeted subframe refresh can make sense when the corrosion is still manageable.
This process is not the same as replacing a rotten or structurally compromised subframe. If a subframe is too far gone, replacement or specialist repair may still be required. But when the issue is surface corrosion, failing coating and early-stage deterioration, cleaning, treating and protecting the subframe can be a far more sensible route.
The subframe treatment, stage by stage
A focused six-stage process to remove the visible corrosion, stabilise what remained, protect the external surface, and protect the inside of the subframe too.
Initial inspection
- Vehicle in the air, rear subframe and surrounding areas inspected
- Visible surface corrosion and flaking, failing coating noted
- Wider underside in very good condition, so the scope stayed on the subframe

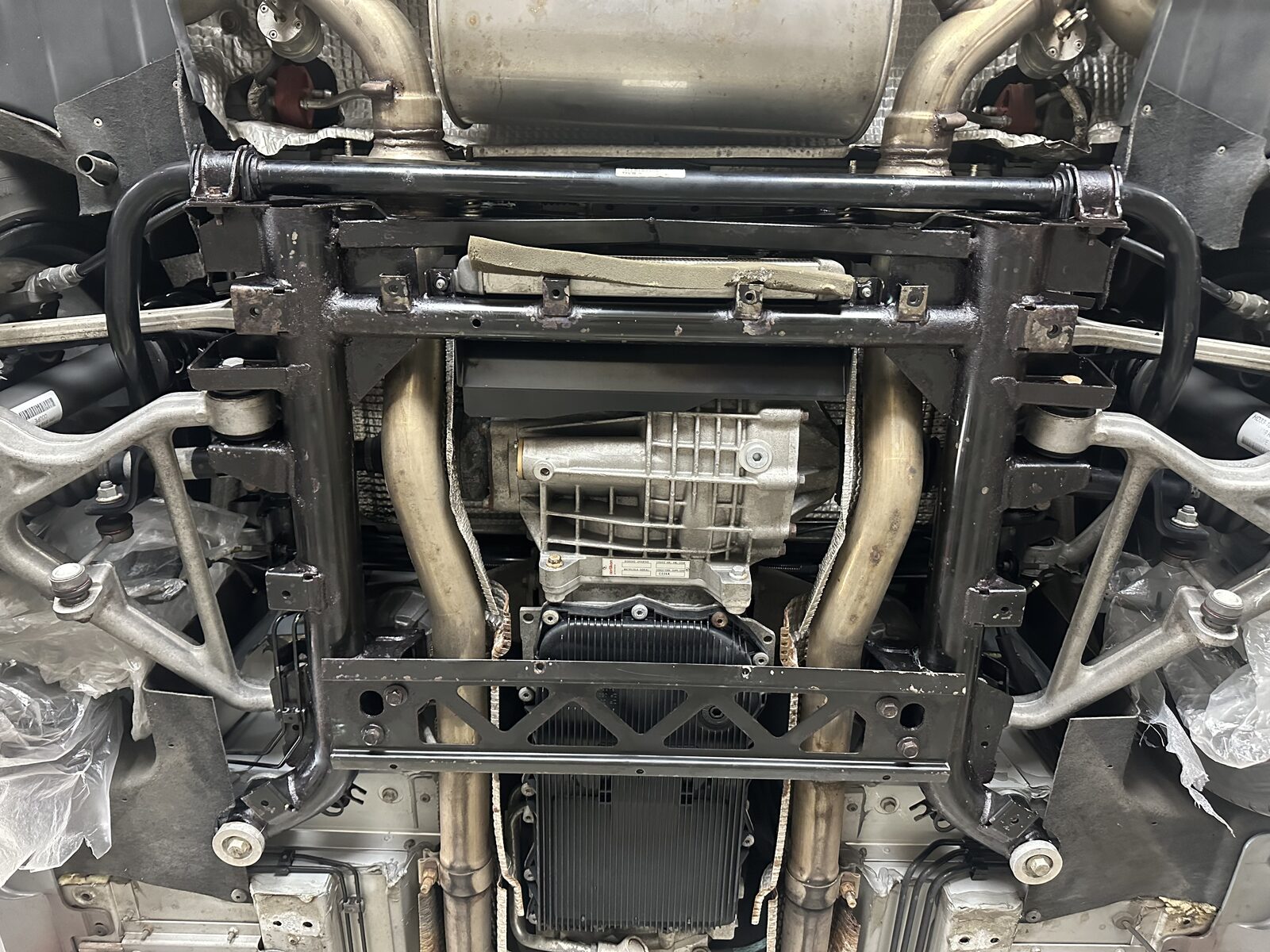

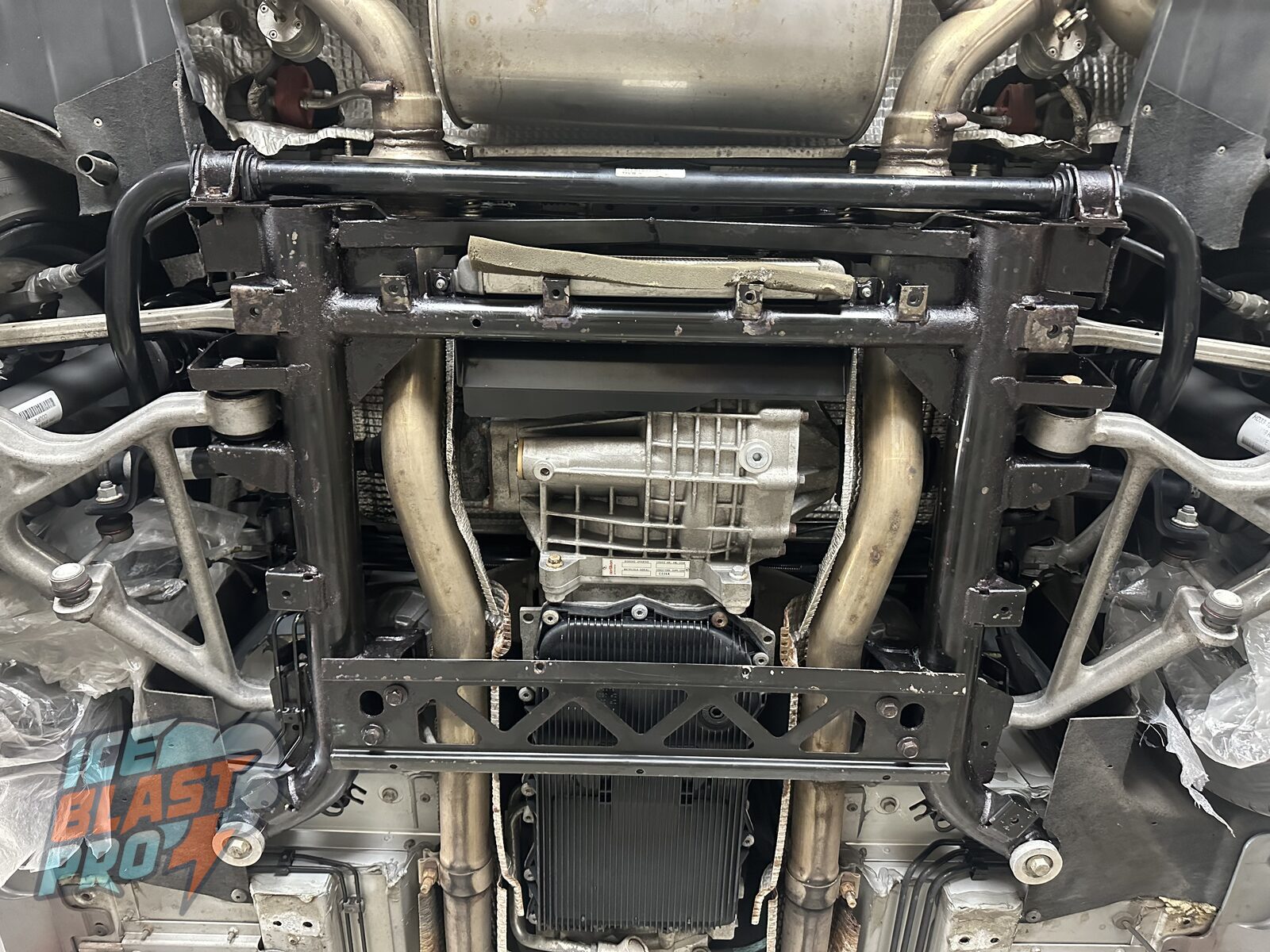

Dry ice blasting the subframe
- Loose contamination, failing coating and surface corrosion removed
- No water introduced into seams, joints or cavities
- True condition of the metal revealed before treatment
Rust stabilising treatment
- Multi-stage rust treatment soaked into the corrosion left after blasting
- Affected areas stabilised before sealing
- Goal is to stop active corrosion, not just cover it
Epoxy coating
- Treated areas sealed with an epoxy coating
- A stable, well-prepared foundation laid before the final protection
Bilt Hamber Dynax UC clear wax
- Clear external protection rather than a heavy black underseal
- A discreet finish that still lets the subframe be inspected in future
Internal cavity wax protection
- Cavity wax injected inside the subframe where access allowed
- Creeps into internal sections, seams and voids
- Protects the structure from the inside as well as the outside

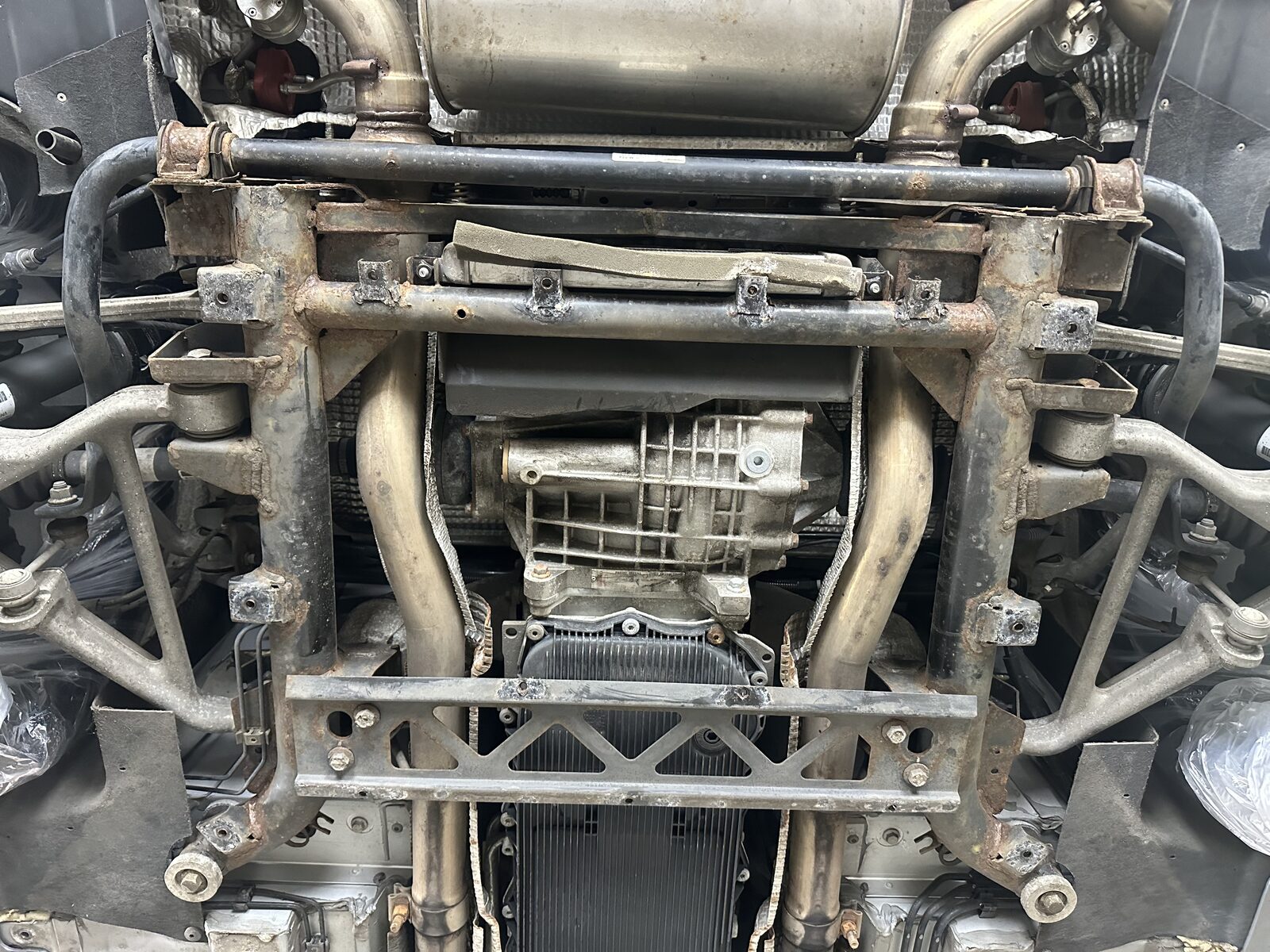

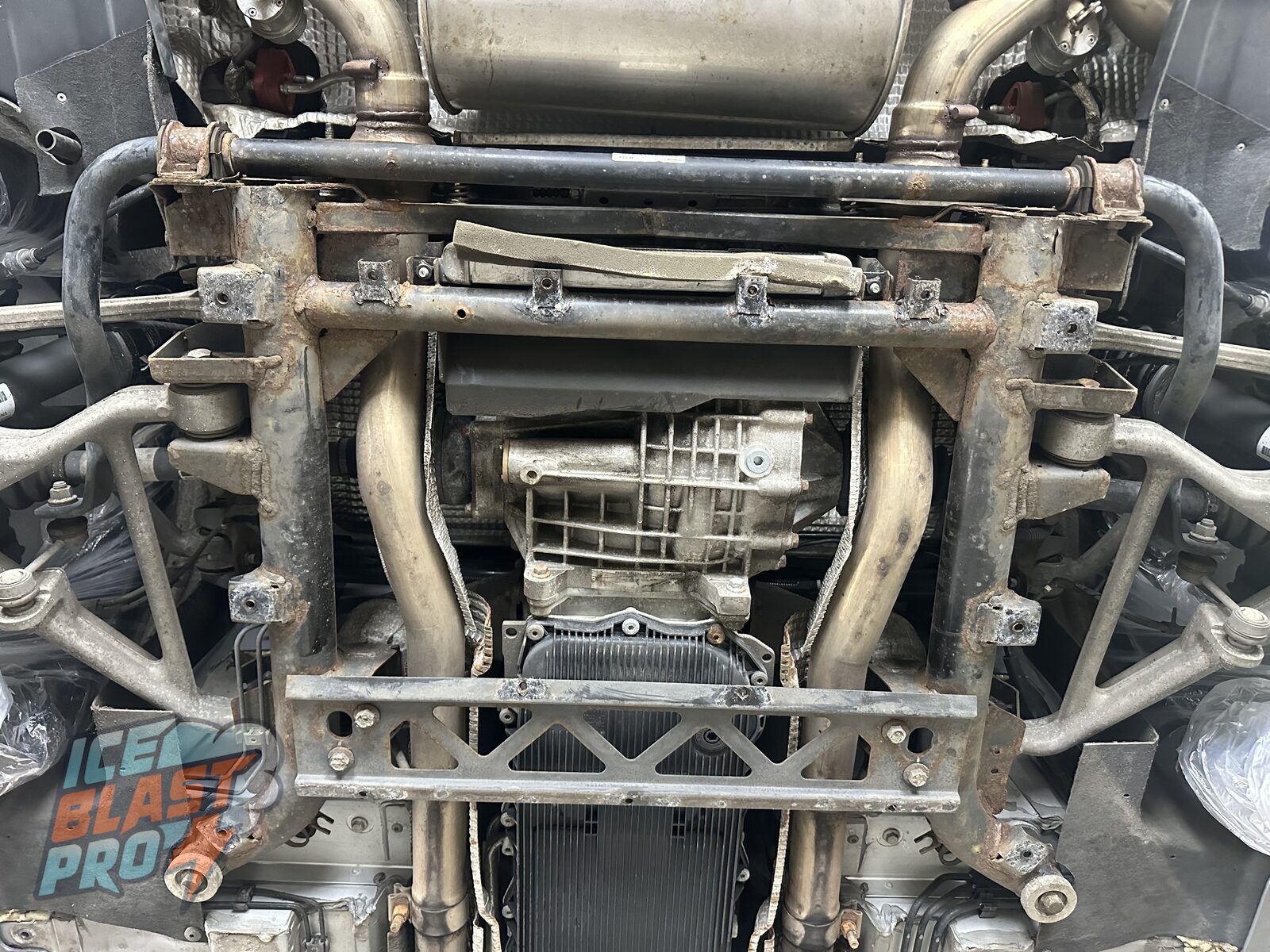

From surface corrosion to protected steel
The same rear subframe through the job: corroded on arrival, blasted back so the true condition could be assessed, then treated, sealed and protected.

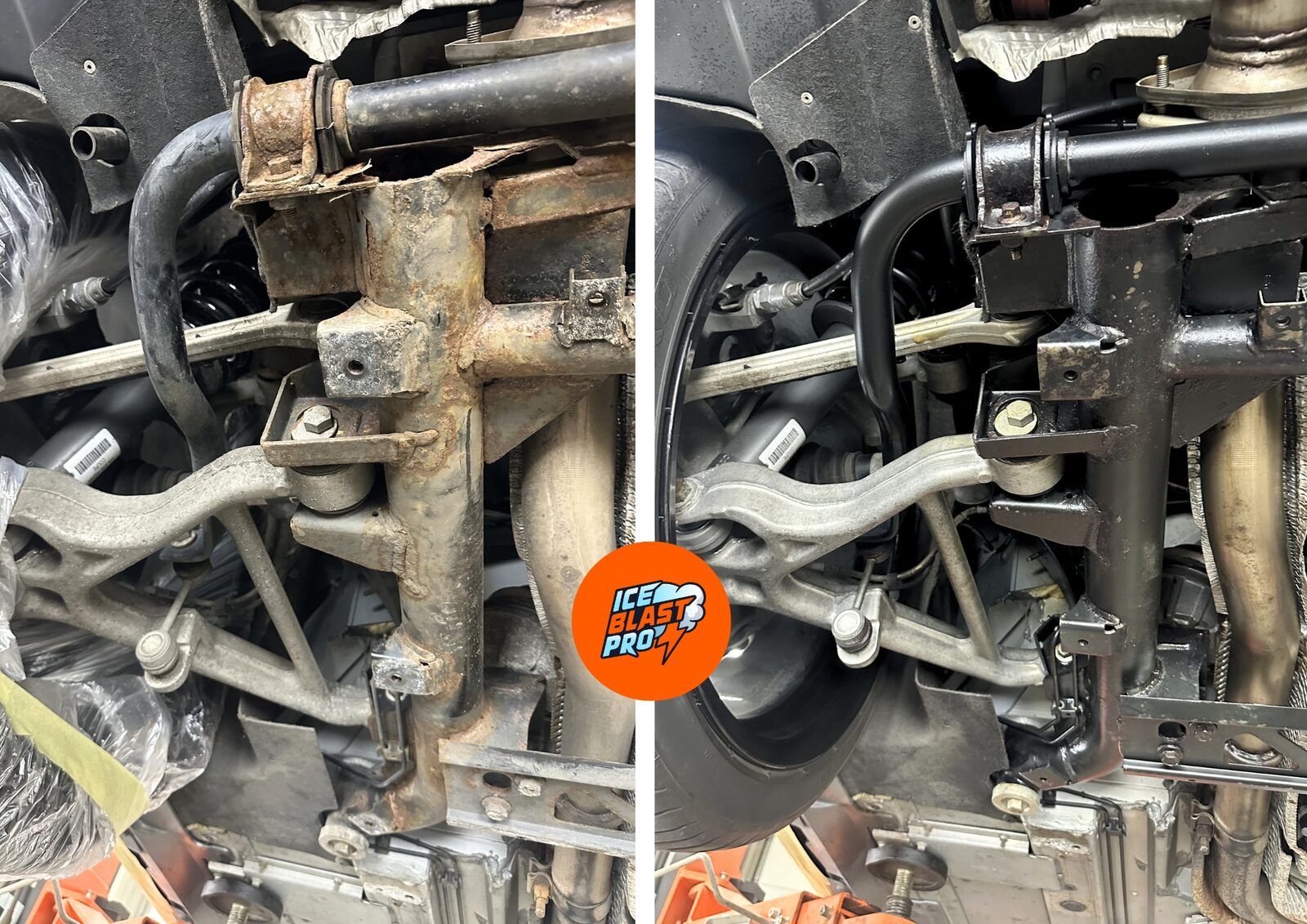

The difference, side by side
The corrosion removed, the deeper corrosion stabilised, and the subframe sealed with epoxy and protected with clear Bilt Hamber Dynax UC wax – a finish that still allows the metal to be inspected in future.

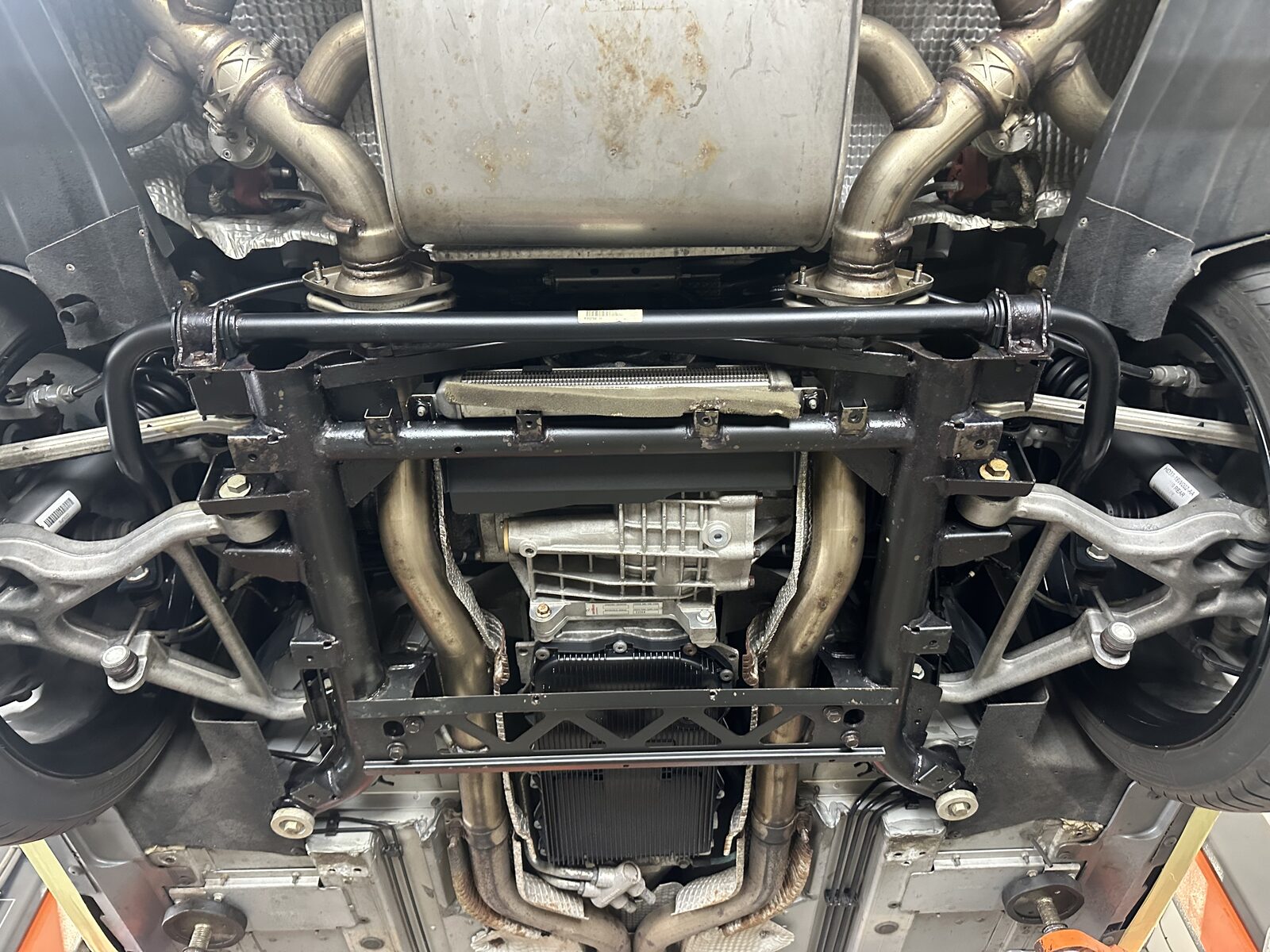

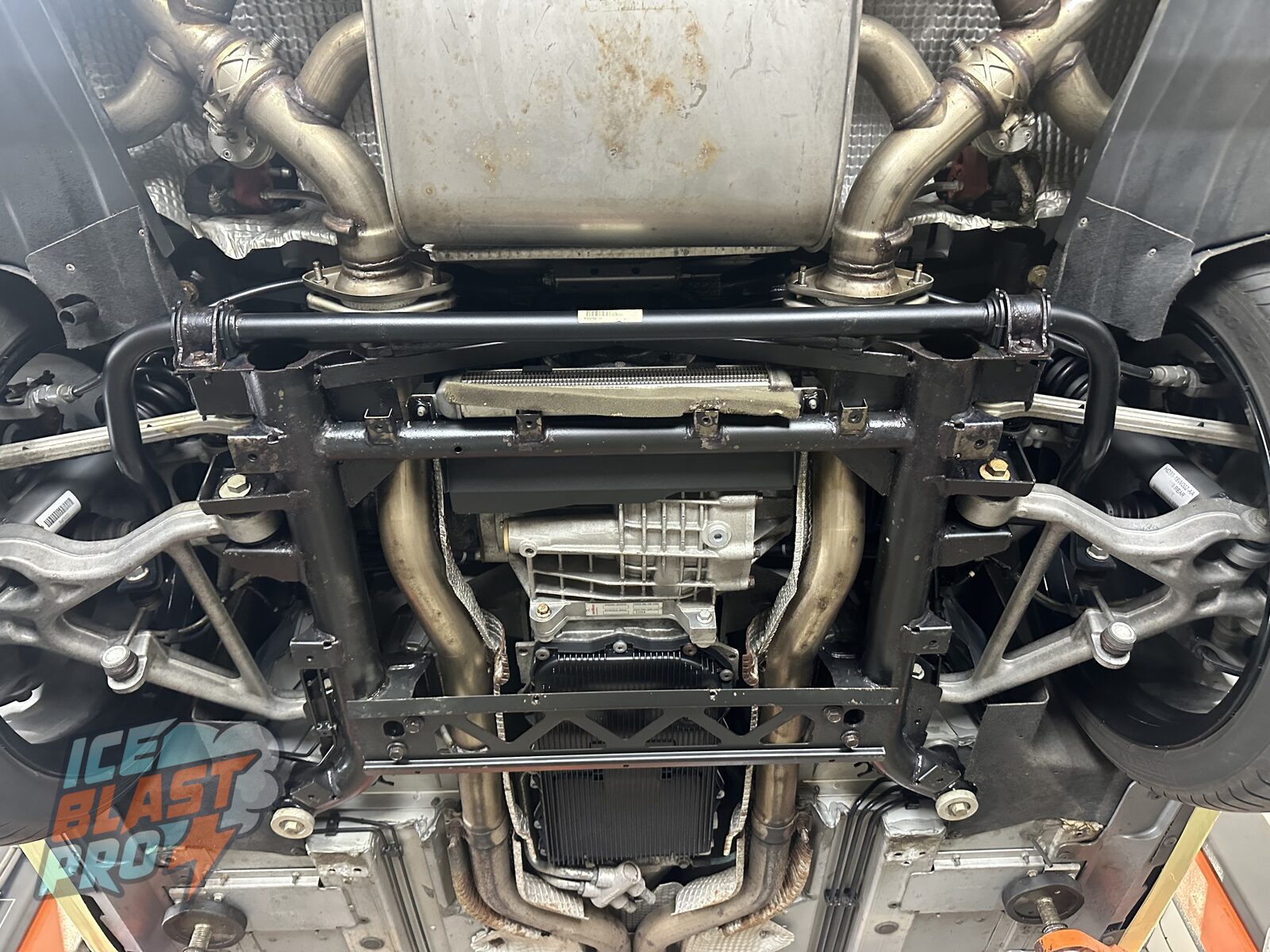

A cleaner, treated and protected subframe
The surface corrosion had been removed, the deeper corrosion had been stabilised, the subframe had been sealed with epoxy coating, the outside had been protected with clear Bilt Hamber Dynax UC, and the inside had been treated with cavity wax. This gave the customer a far more cost-effective solution than immediately replacing the subframe, while still dealing with the corrosion properly.
When corrosion is caught early enough, it may be possible to clean, treat and protect the existing subframe rather than waiting until replacement becomes the only realistic option. For Aston Martin owners searching for subframe corrosion treatment, subframe rust protection or a more cost-effective alternative to replacement, this project shows what a targeted preservation process can look like.
Watch the subframe refresh
A short walkaround of the rear subframe – the corrosion on arrival, and the treated, protected finish.
Common questions about Aston Martin subframe treatment
Can an Aston Martin subframe be treated instead of replaced?
In some cases, yes. If the issue is surface corrosion or failing coating, the subframe may be suitable for cleaning, rust treatment and protection. If the subframe is structurally compromised, replacement or specialist repair may still be required.
How much does Aston Martin subframe replacement cost?
Costs vary depending on the model, part availability, labour and the amount of associated suspension work required. Owners are often faced with significant costs, which is why early subframe inspection and treatment can be worthwhile.
Why do Aston Martin subframes corrode?
Even on cars with aluminium or carbon body construction, steel subframes, brackets, fixings and mounting areas can still corrode. Moisture, salt, failed coating and trapped dirt can accelerate the process.
What is the benefit of dry ice blasting a subframe?
Dry ice blasting removes loose corrosion, dirt and failing coating without introducing water. This allows the true condition of the subframe to be inspected before rust treatment and protection.
Why use clear wax instead of black underseal?
Clear wax is useful when the owner wants protection while still being able to see and inspect the subframe. It gives a more discreet finish than black underseal.
Can the inside of a subframe be protected?
Where access allows, cavity wax can be injected into internal sections. This helps protect areas that cannot be reached by external cleaning or blasting.
